TCP IP Acrylic Panel Stainless Steel Security Turnstile Gate

Name: TCP IP Acrylic Panel Stainless Steel Security Turnstile Gate
Brand: Uniqscan
Price: 750 USD

China TCP IP Acrylic Panel Stainless Steel Security Turnstile Gate wholesale

Brand Name : Uniqscan

Model Number : UT560-B

Certification : CE, ISO9001

Place of Origin : Gongdong, China

MOQ : 1 unit

Price : USD 750-850 UNIT

Payment Terms : T/T, Western Union

Supply Ability : 2000 unit per month

Delivery Time : afer got payment 5-7 days

Packaging Details : Single item Single package size: 147X35X110 cm Single gross weight: 122.0 kg

Product name : Tripod turnstile

Communication Interface : TCP/IP

Material : 304# stainless steel

Power Supply : AC110V±10V,60Hz / AC220V±10V,50Hz

Speed : 35-40 person/min

Dimension : 1200*300*980mm (Standard)

Contact Now

Widely Used Acrylic Panel Stainless Steel Security Flap Turnstile Gate

1. Standard Specification:

Dimension	1200300980mm (Standard)
Stainless Steel	#304
Power Supply	AC110V±10V,60Hz / AC220V±10V,50Hz
Passing Speed	40 persons/min (normal open) 30 persons/min (normal close)
Response Time	1s
Communication Interface	TCP/IP
Operating Temperature	-15°C ~ 50°C
Related Humility	<=95%
Package	Plywood Box
Gross Weight	Approx. 70KG
Automatic reset time after failure:	10 seconds
Opening and closing time	2-3 seconds
Infrared Sensor	3 pairs
Thickness	Head:1.5mm, Cabinet:1.2mm

2. Standard product features:

1) It has fault self-test and alarm prompt function, which is convenient for users to maintain and use;
 2) The operating state of the programmable device through the built-in small push panel on the main control board;
 3) Anti-pinch and anti-collision function, when the resistance is blocked during the swing arm reset, the motor will automatically stop working within the specified time. After the default delay, it will be reset again (until reset), and the force is very small (≤2Kg );
 4) Anti-shock function, the swing arm is automatically locked when no open signal is received;
 5) The swing arm is synchronously adjustable (for double swing);
 6) With automatic reset function, the system will automatically cancel the user's permission for the passage when the switch is not open within the specified time;
 7) Freely adjustable normally open or normally closed to meet the requirements of different venues;
 8) It can be connected with a variety of card reading devices to receive relay switch signals;
 9) One-way and two-way pendulum function, which can control the entry and exit of personnel in one direction or two directions;
 10) Remote control and management can be realized directly through the management computer;
 11) Delay automatic reset, the system defaults to 10 seconds (adjustable) automatic reset after turning on;
 12) The power-off swing arm is automatically opened and automatically closed when it is powered, which meets the fire protection requirements.

3. Optional features:

1) Sound and light alarm functions, including illegal intrusion alarm, anti-pinch alarm, etc.;
 2) Counting function;
 3) Infrared reset function;
 4) The chassis is lengthened, the swing arm is lengthened, and so on.

4. Main structure and configuration

SUS304 standard case
 Stainless steel swing arm
 Turnstile control PCB
 Direction indicator board
 Power supply
 Motor
 Movement and transmission part 1 set
 Infrared sensor 3 pairs

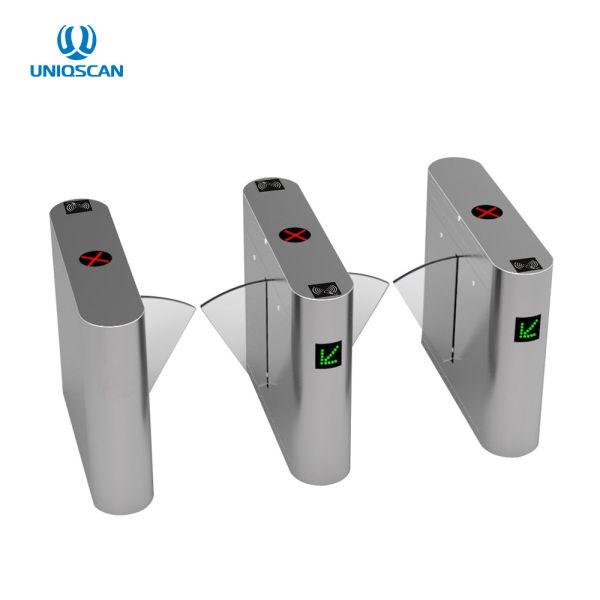

Detail photo :

TCP IP Acrylic Panel Stainless Steel Security Turnstile Gate

TCP Security Turnstile Gate

Acrylic Panel Security Turnstile Gate

TCP Stainless Steel Turnstile Gate

TCP IP Acrylic Panel Stainless Steel Security Turnstile Gate Images
